Video over IP

Xantech Video over IP

Built for Every Situation



Matrix

Matrix

Infinitely scalable beyond
square configurations

Switch

Switch

Many-to-One

Video Wall

Video Wall

Simple Multi-Video
Wall Management

Extend

Extend

One-to-One

Split

Split

One-to-Many

Easy Control Integration:

Home Automation Logos



The Xantech Premium Video over IP (VIP) platform distributes HDMI video over a 1GB Network switch with an imperceptible 1-frame latency. Using lossless compression technology, Xantech delivers HDMI, IR and RS-232 to lengths of up to 100m over a single CAT cable. As with all Xantech products, ease of installation is a must and the new 4K UHD Video over IP solution can be installed in minutes without the need for any networking qualifications.

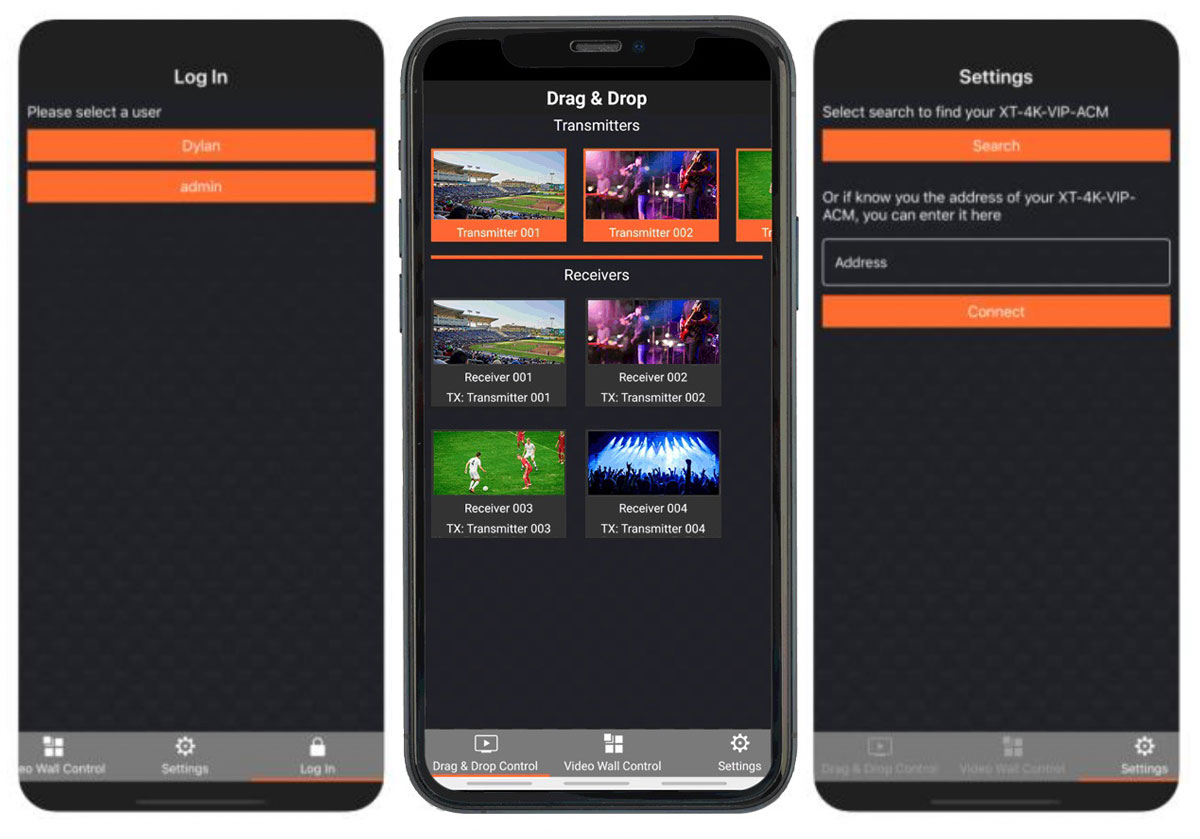

Adding the Advanced Control Module to any Xantech Video over IP system opens a new level of control with drag-and-drop routing and easy access from any third-party control system.

Control it All

  • IR/serial passthrough and IP bridging help manage all of your A/V devices, sources, and displays
  • The USB 2.0 ports can be used by keyboards, mice, storage drives, and interactive device control
  • Control every signal with independent routing of video, audio, USB, IR, and serial

Making Setup and Installation Easy

  • Wizard-based tool helps you save time by completing setup in a few simple steps
  • You don’t need to be a network professional with automatic device discovery and setup
  • PoE powered units helps save valuable space in the rack

4K Scaling

Exceptional 4K Ultra HD Quality

  • Supports 4K Ultra HD (3840 x 2160) and HDR that is available on the latest HDMI 2.0 devices
  • The built-in scaling ensures that every source will work with any display
  • Exceptional picture quality with virtually latency-free performance (1 frame)

Any Size

Any Size, Small or Large

  • Supports nearly an infinite number of sources and displays for any sized installation
  • Save time and money with the ability to add sources and displays at any time
  • Make it easy to mirror content on multiple displays using the daisy-chain feature found on all receivers

Key Features and Benefits

  • Wizard-based installation for easy set-up and installation – basic product installation and configuration takes just seconds without needing a computer or configuration software
  • No need for knowledge of networks or creating VLAN’s
  • Product supports full 4K UHD input, including HDR (@24fps) up to lengths of 100m
  • Exceptional image quality, virtually latency free (1 frame)
  • Receiver’s built-in video scaler allows each display to use its optimal resolution
  • Scales to incorporate virtually any number of transmitters and receivers
  • Easy integration with all 3rd party control systems including ELAN, Control 4, Savant, Crestron, RTI, URC
  • Loop-out network port enables daisy chaining receivers to extend distances
  • IR control and IR pass-through control enabled
  • PoE from a compatible PoE network switch can power all components within the system
  • Designed to be configured with virtually any Layer 3 Gigabit network switch





 XT-4K-VIP-ACM

Advanced Control Module

4K Video Over IP Advance Control Module

The XT-4K-VIP-ACM allows simple third-party control of the Xantech Video over IP system using TCP/IP, RS-232 or IR.

 XT-4K-VIP-TX

VIP Transmitter

4K Video Over IP Transmitter with Audio Breakout

Lossless compression technology delivers HDMI, Bi-directional IR and RS-232 up to lengths of 100m over a single CAT cable. Accepts PoE from the Network switch or locally should the switch not support PoE.

 XT-4K-VIP-RX

VIP Receiver

4K Video Over IP Receiver with Audio Breakout

Lossless compression technology delivers HDMI, Bi-directional IR and RS-232 up to lengths of 100m over a single CAT cable. Accepts PoE from the Network switch or locally should the switch not support PoE.

 MT-VIP-2U

2U Rackmount

Video Over IP 4 Unit Rack Mount - 2U - Coming Soon

The MT-VIP-2U is a VIP rack mount solution that fits into a 2U rack space. The shelf is designed to elegantly mount 4 Transmitter or Receiver units and comes with all necessary mounting hardware. This easy to install accessory has been designed to compliment the VIP range of products.
